700 bar
Maximum Operating Pressure
450 l
Maximum Tank Size
15 kW
Maximum Drive Power

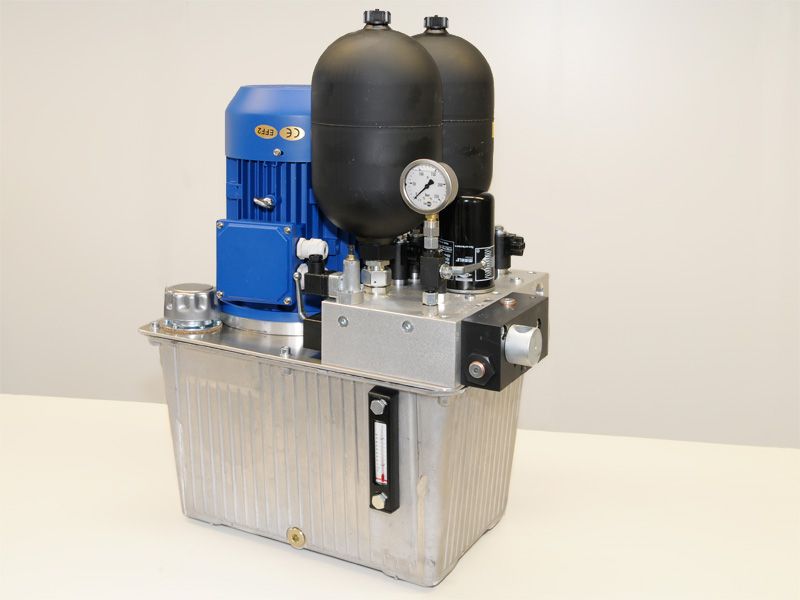

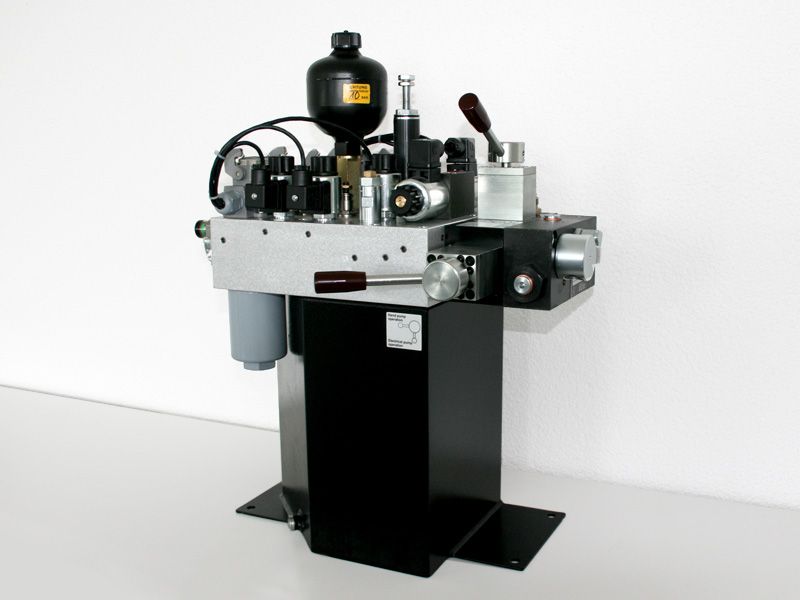

Ekomat is a specialist in the development and manufacture of custom hydraulic units for a wide range of applications. We focus particularly on:
Compact and Modular Design
The integration of valves into the base block and the reduction of piping components allows for minimal dimensions and a modular structure.
Drive Powers up to 15 kW
We work with industrial motors from various manufacturers according to energy efficiency classes IE3 and IE4, up to 15 kW.
Wide Range of Pumps up to 700 bar
We utilize various types of pumps, particularly external and internal gear pumps, as well as axial and radial piston pumps, capable of handling operating pressures up to 700 bar.
Tank Sizes up to 450 liters
Our tanks are manufactured from aluminum, steel sheet, or plastic as required and have capacities of up to 450 liters.
